SPRINKLERS
We offer a wide range of high performance sprinklers resulting in increased crop yields and consistent quality. Our sprinkler pipes can be used in open fields, orchards and green houses for purpose of irrigation, frost protection and fogging/misting.
FEATURES

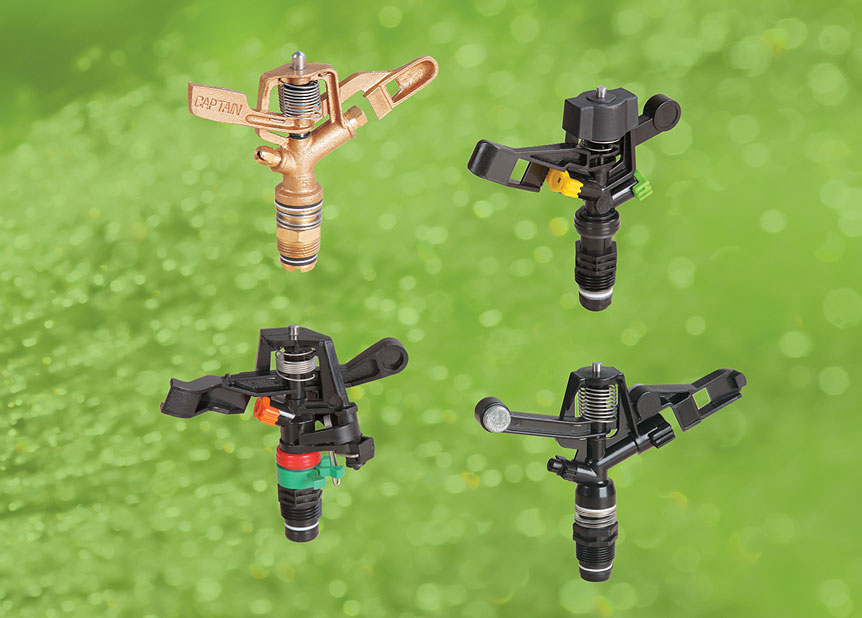

Brass Sprinkler Nozzle
- Available in 3/4" & 1/2" BSP Thread Connection
- Bronze Body & Arm, Brass Bearing Sleeve & Nipple
- Both Part Circle and Full circle Operations possible (CPL-20PC)
- Part circle operation ranging from 20° to 340° (CPL-20PC)
- Corrosion Proof I-bean construction for added strength
- Easy to install & maintain
Plastic Sprinker Nozzle
- Available in 3/4" & 1/2" male threaded connection
- Body, Arm, Bearing & Nozzles made of engineering plastic (Delrin) for durability
- Specially designed lockable nozzles and Stainless Steel Springs & Pivot Pin
- Both Part Circle & full Circle Operation possible
- Part circle operation ranging from 30° to 330° (CPL-20PC)
- High Impact-duty plastic materials provide resistance to corrosion, chemicals and UV radiation
Specification
| Product Name |
Sprinkler Pipe (Quick Coupled Pipe) |
| Size (Dia.) |
63mm, 75mm, 90mm, 110mm, 125mm & 140mm |
| Length |
6 Mtrs Length for each pipe |
| Standard |
ISO 9001 2015 |
| Type |
Regular, Notch and "C" clamp Coupler in fusion and butt welding |
| Applications |
Sprinkler and drip irrigation systems for main and sub main line |

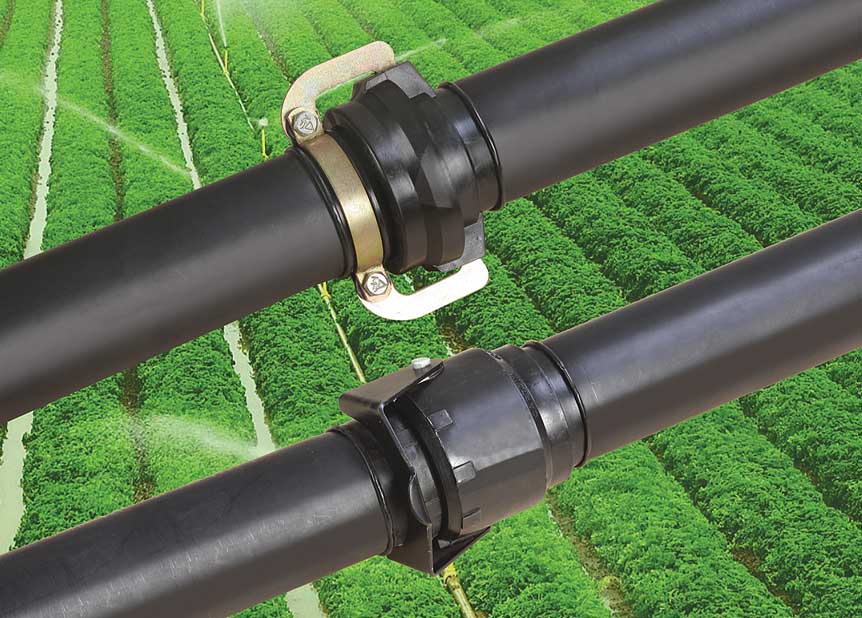

| Product Name |
Sprinkler Coupler with Foot Batten, Bend, Tee, End Cap, Pump Connecting Nipple |
| Size (Dia.) |
63mm, 75mm, 90mm, 110mm, 125mm & 140mm |
| Type |
Regular Latch and "C" clamp Coupler |
| Applications |
Sprinkler and drip irrigation system |
